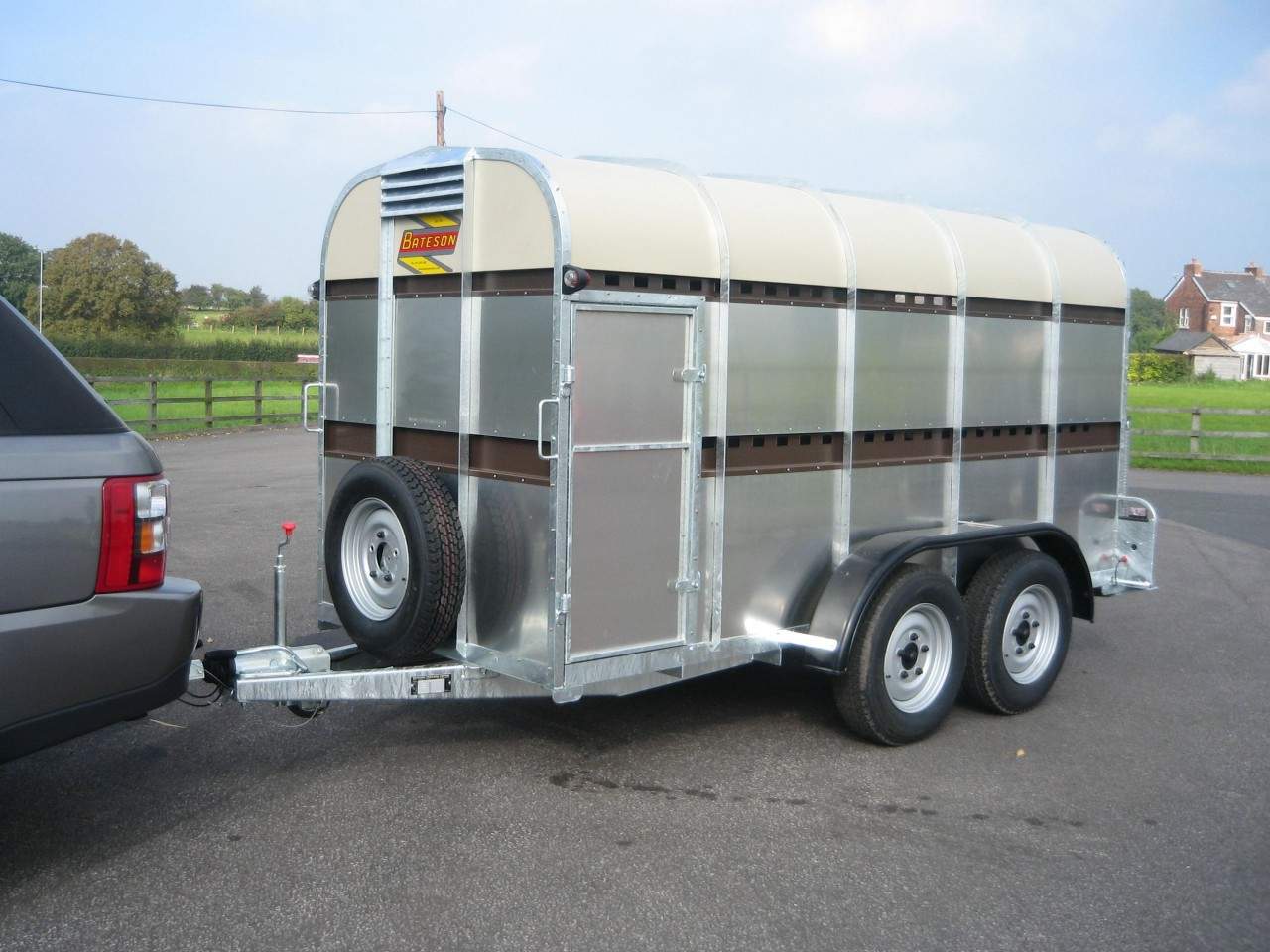

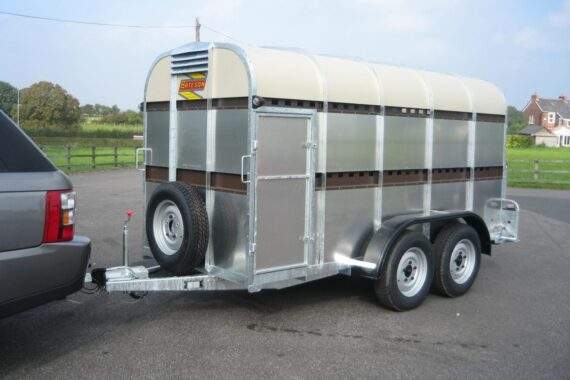

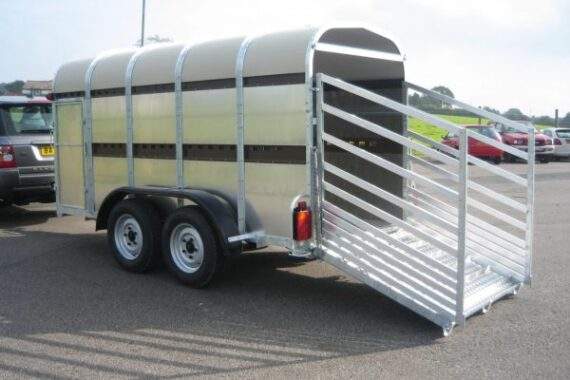

BATESON 47LT 12' X 5' LIVESTOCK TRAILER

Specification

12' x 5' x 6' Livestock Trailer for use with 4WD and larger vehicles
Model 47LT is our longest trailer with a 5' wide body and is ideal where narrow lanes are to be negotiated. Plated at 2600kg and being a bit narrower it is very suitable for use with pick up trucks

All models have a hot dipped galvanised chassis and are panelled with 2mm toughened alloy sides and a plastic coated galvanised steel roof. The floor is 18mm Phenol coated panels covered with aluminium tread-plate and a folded tread-plate ramp door.

The 47LT is fitted with full width independent suspension axles and auto-reversing brakes. Standard equipment includes A side door, front jockey wheel, locking hitch, ramp side gates, ramp lifting springs and a spare wheel.

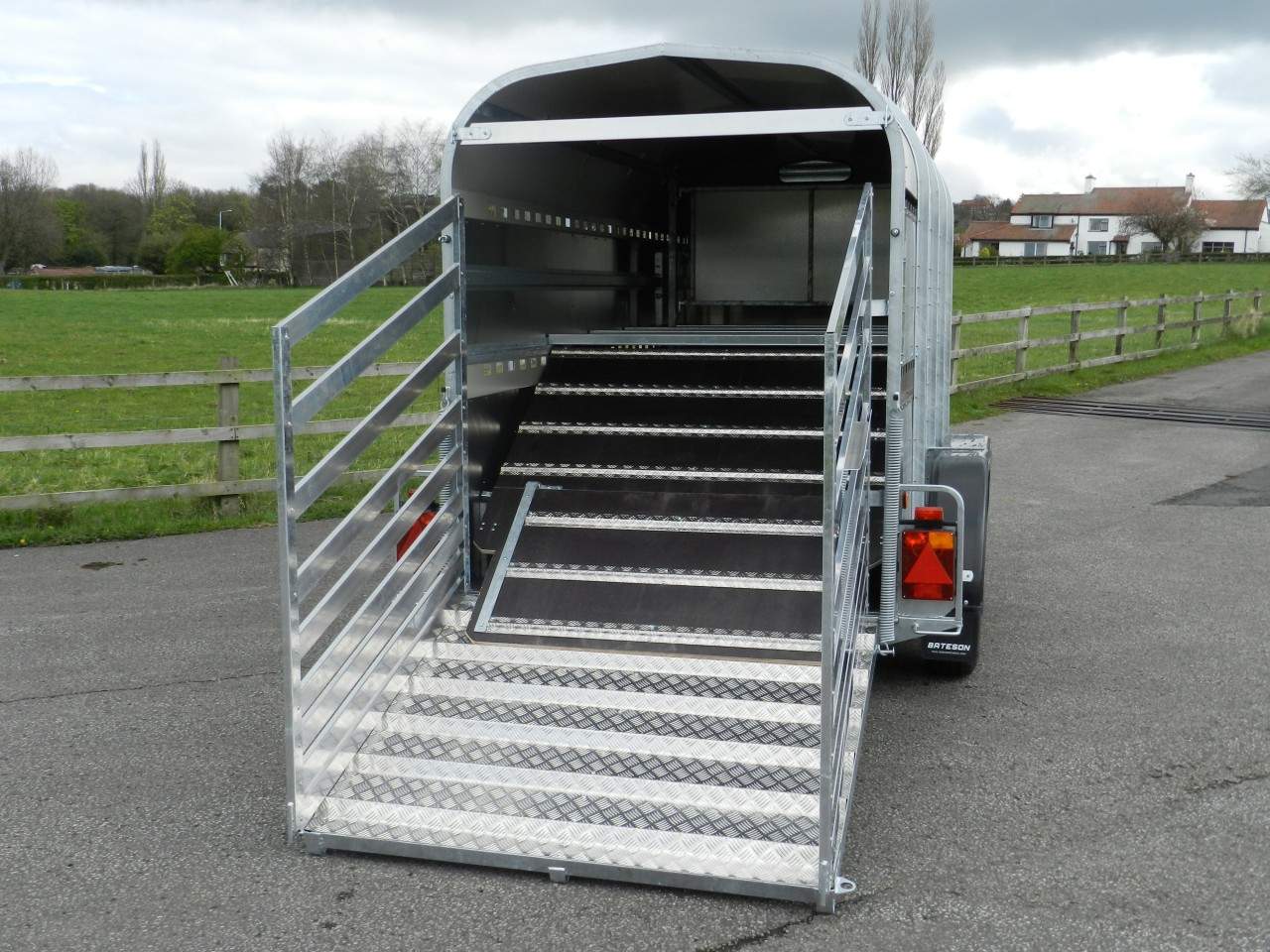

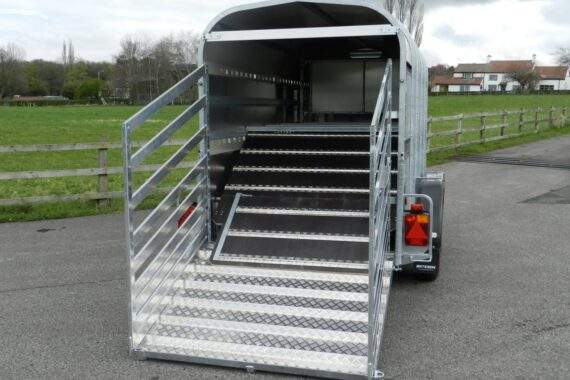

The 47LT is available with simple lift out decks with a rear ramp section. A cross division gate is available as an option. Maximum permitted pen lengths are 12' for cattle, 10' for sheep and pigs and 8' for calves.

• Gross Weight - 2600KG
• Unladed Weight - 850KG
• Capacity - 1750KG
• External Length - 5000MM
• External Width - 2070MM
• External Height - 2320MM

• Internal Length - 3600MM
• Internal Width - 1500MM
• Internal Height - 1800MM

• Tyre Size - 205 x 16
• Tow Ball Height - 500

OPTIONAL EXTRAS

• 12v Interior Light - £60.00
• Cattle Cross Division Gate - £300.00
• 12' x 5' Decks - £380.00
• Opening Front Ventilation - £300.00
• Universal Cross Division Gate (For Use With Decks) - £300.00
• Data Tag Security - £110.00
• Heavy Duty Wheel Clamp - £175.00
• Sump Tank - £250.00
• Hitch Head Lock - £175.00

DELIVERY AVAILABLE
