0852 GENERAL PURPOSE TRAILER

Specification

8' x 5' Our largest single axle general purpose trailer

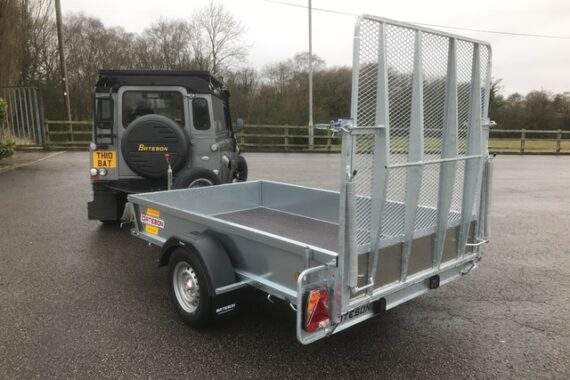

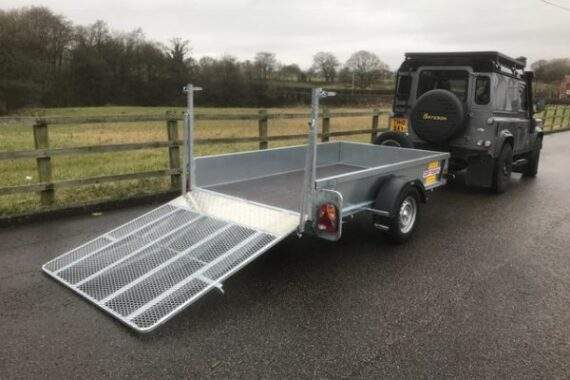

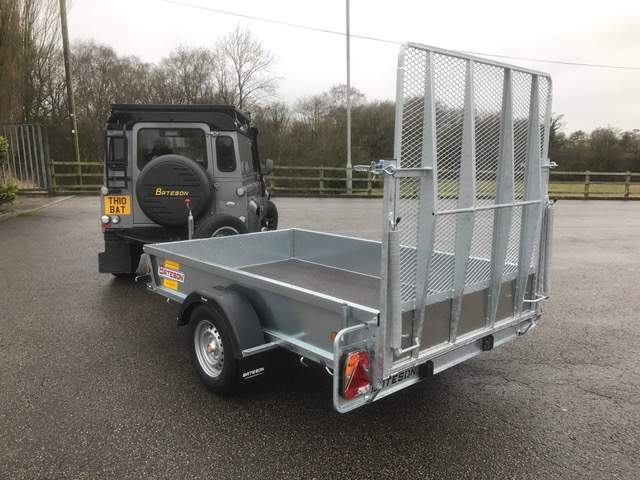

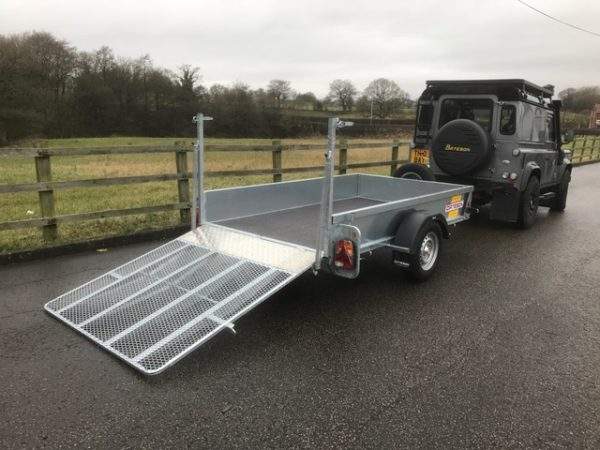

0852 shown with an optional ramp door

Model 0852 is our largest single axle trailer, it has a 1 ton capacity and is often supplied with a ramp tailboard for transporting wider grass cutting machinery. In common with all the general purpose trailers in this range, has a hot dipped galvanised steel chassis with 2mm thick pre-galvanised steel sides 300 mm deep and an 18 mm phenol coated non-slip plywood floor. The independent rubber suspension axle has auto reversing brakes, operated by cast steel hydraulic damped over run coupling with a power assisted hand brake and integral jockey wheel. Full road lights are fitted, a spare wheel and hitch lock are included standard.

Illustrated to the left is a special 1062 version 3 metres long for transporting all terrain vehicles or similar equipment.

• Gross Weight - 1300KG
• Unladen Weight - 330KG
• Capacity - 970KG
• Exterior Length - 3850MM
• Exterior Width - 2010MM
• Internal Length - 2500MM
• Internal Width - 1500MM
• Tyre Size - 165 x 13
• Tow Ball Height - 450MM

OPTIONAL EXTRAS

• 5' Wide Spring Assisted Ramp Tail Board- £375.00
• GP Ladder Rack - £65.00
• Rear Loading Stands - £40.00
• 4 x Recessed Deck Rings - £100.00
• 8'x5' Mesh Side Extensions - £430.00
• 1000KG Strap Winch & Bracket - £150.00
• 8'x5' Alloy Treadplate Floor - £245.00
• Wheel Clamp - £140.00

DELIVERY AVAILABLE
