0854 GENERAL PURPOSE TRAILER

Specification

8' x 5' Twin axle general purpose trailer

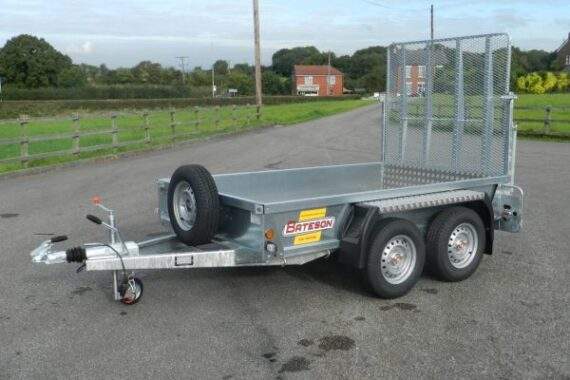

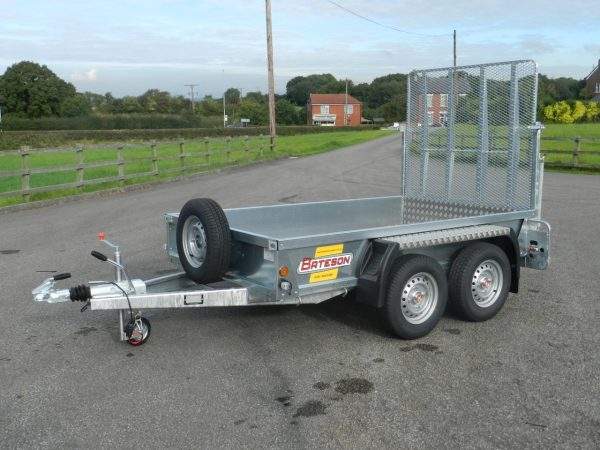

0854 shown with optional ramp door.

In common with all the general purpose trailers in this range, Model 0854 has a hot dipped galvanized steel chassis with 2 mm thick pre-galvanized steel sides 300 mm deep and an 18 mm phenol coated non-slip plywood floor. The independent rubber suspension axles have auto reversing brakes, operated by cast steel hydraulic damped over run coupling with a power assisted hand brake and integral jockey wheel. Full road lights are fitted and the specially designed damage resistant mudguards are fitted with aluminium tread plate €˜stand on ' tops. the above photo shows the optional 1500 mm high ramp door providing a 15 deg. approach angle.

• Gross Weight - 2200KG
• Unladen Weight - 400KG
• Capacity - 1600KG
• Exterior Length - 3850MM
• Exterior Width - 2010MM
• Internal Length - 2500MM
• Internal Width - 1500MM
• Tyre Size - 165x13
• Tow Ball Height - 450MM

OPTIONAL EXTRAS

• 5' Wide Spring Assisted Ramp Tail Board - £375.00
• GP Ladder Rack - £65.00
• Rear Loading Stands - £40.00
• 4 x Recessed Deck Rings - £100.00
• 1000KG Strap Winch & Bracket - £150.00
• 8'x5' Alloy Treadplate Floor - £245.00
• Wheel Clamp - £140.00

DELIVERY AVAILABLE
