PT76 HYDRAULIC TILT TRAILER

20' x 7' Tilt deck transporter

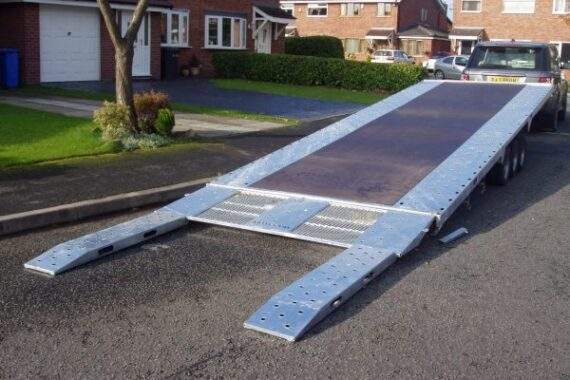

Shown with optional ramp extension blocks

This 20' trailer is shown with ramp extension blocks that store under the deck and solve the problem of loading very low vehicles with large overhangs. The body is 2.1 metres wide as standard but can be increased to 2.3 metres to special order. All features and equipment are as PT56 and PT66 but hinged sides are not available for thePT76 . We also manufacture similar three axle trailers but with fixed decks, not tilting, PF range.

Specification

• Gross Weight - 3500KG
• Unladen Weight - 1060KG
• Capacity - 2440KG
• Exterior Length - 7700MM
• Exterior Width - 2100MM
• Internal Length - 6250MM
• Internal Width - 2100MM
• Tyre Size - 195R10
• Tow Ball Height - 430MM

OPTIONAL EXTRAS

• 2T Hand Winch & Bracket - £425.00
• 4300KG Wireless Electric Winch, Battery & Bracket - £800.00
• Extra Body Width <2.3M - £400.00
• Over Wheel Ratchet Straps - £100.00
• Side Loading Ramps & Carrier - £165.00
• 195x10 Alloy Wheel x 6 - £300.00
• Adjustable Front Wheel Chock - £85.00
• Headboard Only - £140.00
• Ramp Extension Blocks For Low Vehicles - £240.00
• Underbody Strap Box - £140.00
• Winch Bracket Only - £100.00
• Wheel Clamp - £175.00

DELIVERY AVAILABLE
