3536 3.6M X 2M PLATFORM TRAILER

Specification

12' x 6'6 3500Kg Platform Trailer

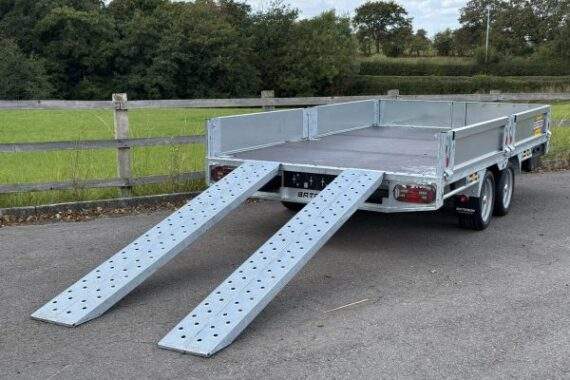

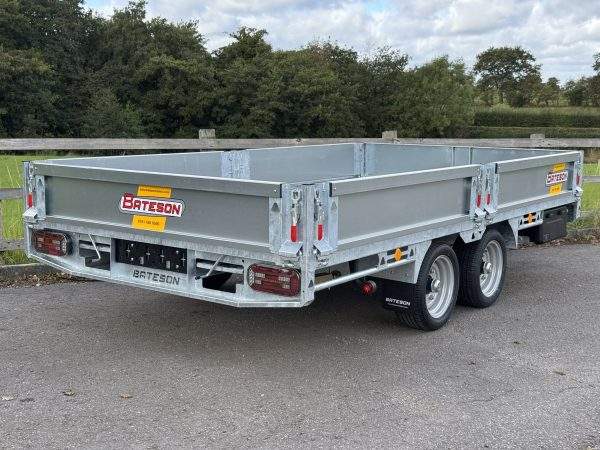

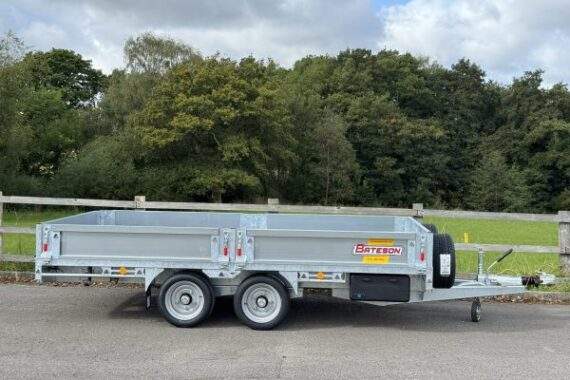

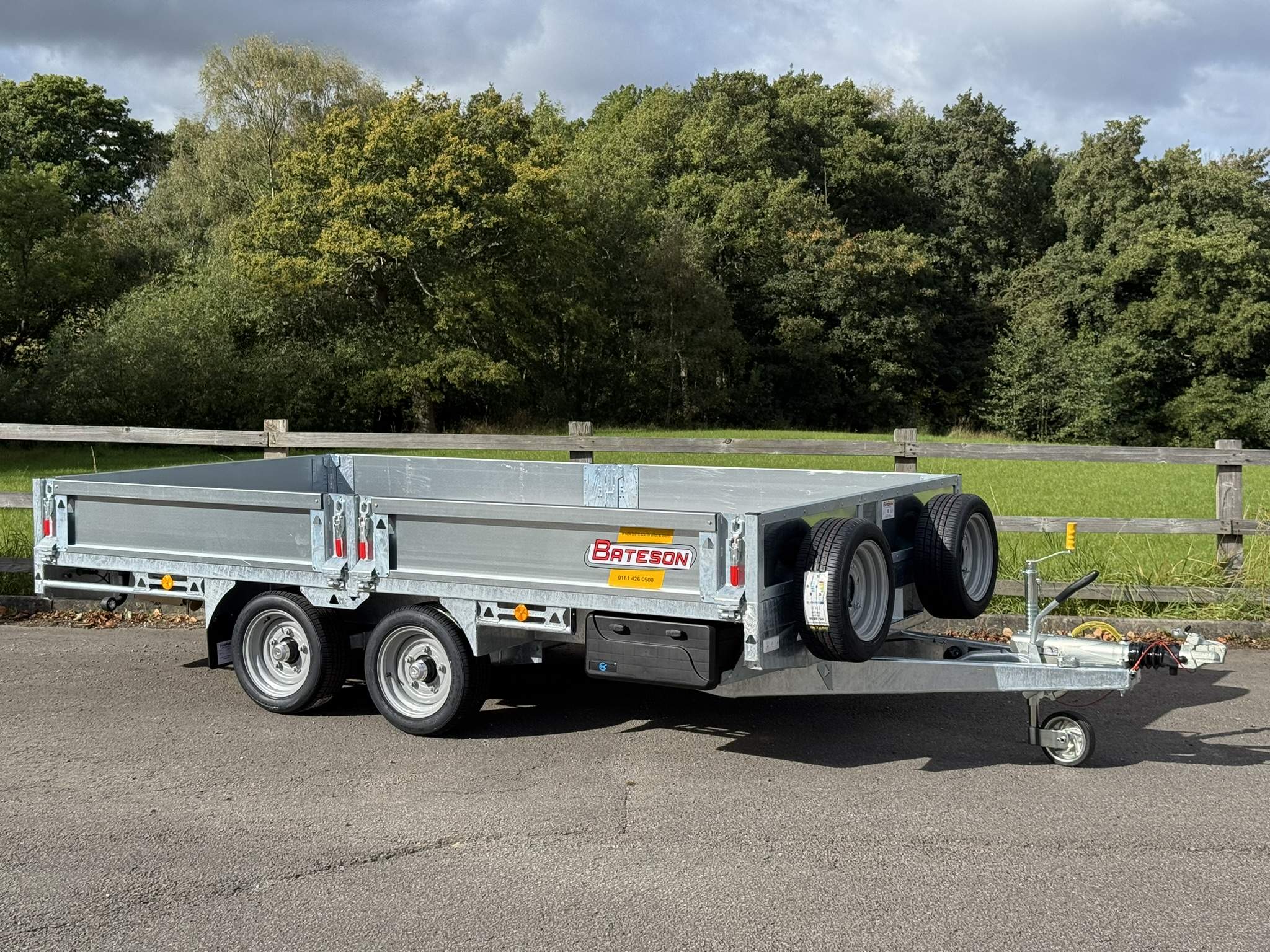

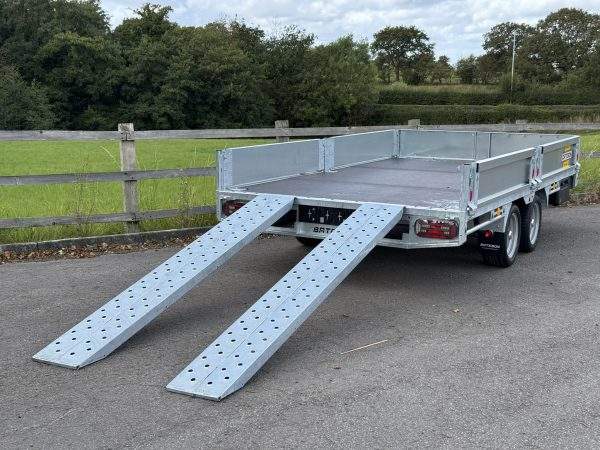

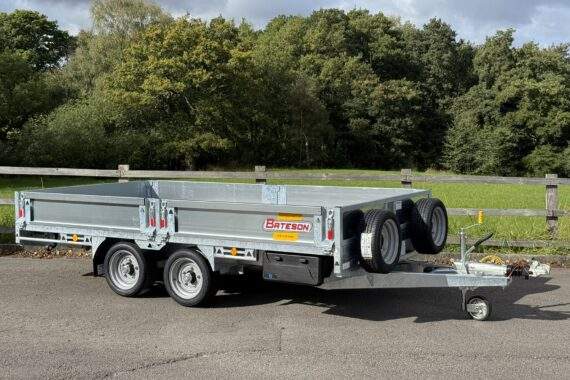

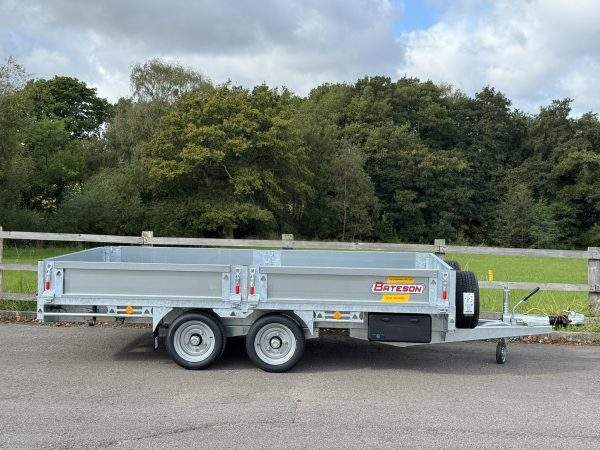

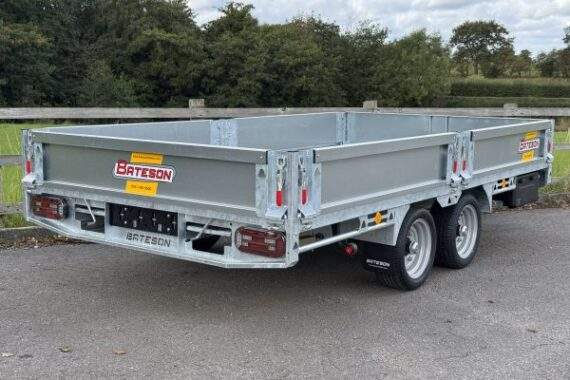

Model shown with optional glavanised steel sides and loading ramps
Model 3536 is a very popular 12 foot 3500Kg platform trailer suitable for use behind most 4x4s. Its 3500 kg gross weight is the maximum permitted weight for a draw bar trailer that does not require an operators licence or be subject to HGV regulations. It is supplied as a flat platform with, full road lights, front jockey wheel and auto reversing overrun brakes.

All trailers in the platform trailer range are fully galvanised, and have Avonride fully independent rubber suspension axles and a hydraulically damped hitch with a lockable cast coupling and power assisted hand brake.

Standard equipment includes a phenol coated plywood floor, flush fitting side rails with post sockets, a front telescopic jockey wheel, full road lights and under body tying rails with load strap securing points (shown on the bottom photograph on the left).

The trailer is often supplied with optional slide in loading ramps and a headboard. Galvanised steel sides, mesh extension sides and a winch are also popular options. It can also be fitted with our 60LT removable livestock container.

DELIVERY AVAILABLE

• Gross Weight -3500KG
• Unladen Weight - 600KG
• Capacity - 2900KG
• Exterior Length - 0MM
• Exterior Width - 0MM
• Internal Length -3600MM
• Internal Width - 2000MM
• Tyre Size - 195/70R13
• Tow Ball Height - 400MM

OPTIONAL EXTRAS

• 1.8M Steel Ramps & Carrier - £400.00
• 2.4M Steel Ramps & Carrier - £450.00
• 30CM Steel Sides 12'x6'6" - £625.00
• 76CM Alloy Treadplate Sides - £750.00
• Alloy Treadplate Floor - £455.00
• 2000KG Hand Winch & Bracket - £500.00
• 4300KG Electric Winch With Battery - £800.00
• 4 x Recessed Deck Rings - £100.00
• Data Tag Security - £110.00
• Extra Body Width 1980mm, 2130mm, 2280mm, 2430mm - £400.00
• 76CM Mesh Extension Sides - £725.00
• 76CM Alloy Treadplate Sides - £750.00
• Headboard Only - £140.00
• Rear Loading Legs - £100.00
• Heavy Duty Wheel Clamp - £175.00
• Ladder Rack - £100.00
• Underbody Strap Box - £140.00
